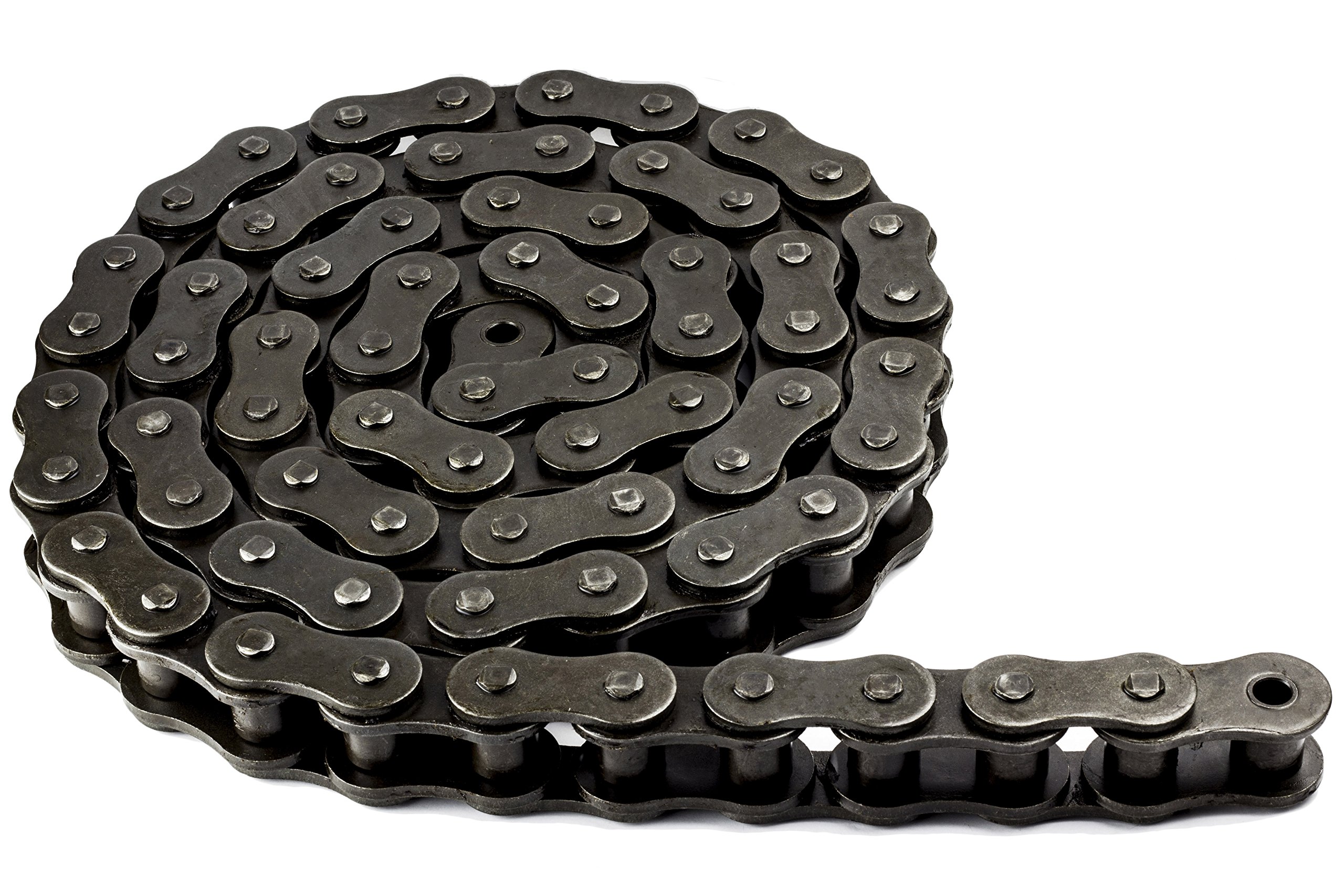

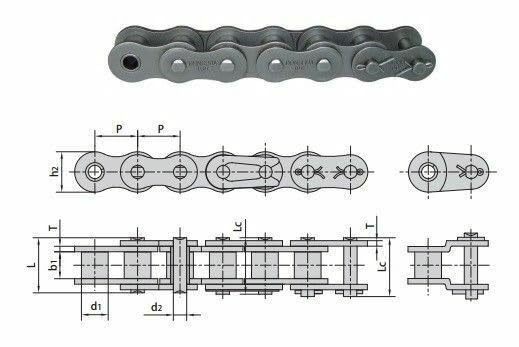

#160 High Performance Standard Roller Chains Standard roller chains are the most widely used chain in industrial equipment across a variety of industries. Here at Jeremywell, we are proud to provide high performance roller chains that meet ANSI standards and have gone through stringent process measures to deliver quality, strength and longevity. Chain Design Features Heat Treatment This ensures the optimum wear life and toughness for all component parts. Shot Peened and Ball Calibrating Link plates and rollers are shot peened for greater fatigue strength. The ball calibrating assures maximum resistance to fatigue failure for the plate hole. Pre-Stressing Pre-stressing operations firmly seat the chain parts evenly distributing the working load. It accurately establishes chain length and prevents rapid elongation during the initial run in period. Pre-Loading Roller chains are running after final assembly, the running in of chain increase it resistance to fatigue and prevent initial elongation of the chain. #160 Roller Chain Specs Pitch Size 2.000 Inch Roller Diameter 1.125 Inch Width Between Inner Plates 1.242 Inch Pin Diameter 0.562 Inch Pin Length L Max 2.551 Inch Pin Length Lc Max 2.740 Inch Inner Plate Depth 1.882 Inch Plate Thickness 0.252 Inch Average Tensile Strength 58000 lb Material Carbon Steel Weight Per Foot 6.767 lbs
